230 V power supply
A replacement for the original adapter, with 6.3 W of spare capacity.
€13.95 incl. VATBuy now
RUTX series · power guide

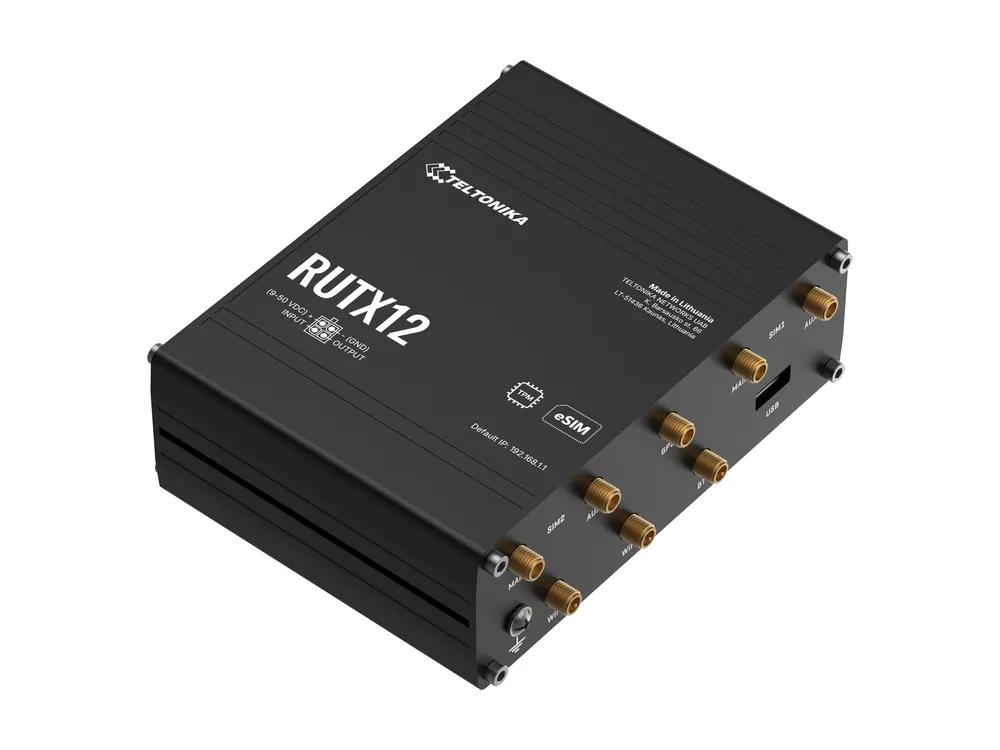

Teltonika RUTX12 power supply and cables
Everything about powering the Teltonika RUTX12, a industrial dual-modem 4G router: the voltage it accepts, its real power draw and the cables that fit.
12/24 V car cable
For 12 V cars and 24 V trucks. The RUTX12 accepts up to 50 V.
€12.95 incl. VATBuy now
Screw terminal cable
For DC rails, batteries and solar. Green and white bring out the I/O.
€11.95 incl. VATBuy now
End of life
Teltonika has announced end of life for the Teltonika RUTX12. Orders are accepted until 3 February 2027, production runs until 3 August 2027 and support continues until 3 August 2032. Teltonika names the Teltonika RUTC42 as the replacement, and it also fits our cables.
About the Teltonika RUTX12
The RUTX12 has two LTE-A Cat 6 modems, so it can use two operators at the same time for load balancing or instant failover. Add five Gigabit ports, dual-band Wi-Fi, Bluetooth and GNSS, and you get a router for jobs where downtime is not acceptable.
It is used for live video, events and emergency services, where two connections at once really matter.
Teltonika RUTX12 at a glance
- Mobile
- 2 x 4G LTE-A Cat 6
- Ethernet
- 5 x Gigabit RJ45
- Wi-Fi
- 2.4 / 5 GHz
- SIM
- 2 x SIM
- Extras
- GNSS, Bluetooth 5.0 LE, USB
- Power input
- 9 to 50 V DC, 4-pin socket
- I/O on power socket
- 1 digital input, 1 digital output
- Peak draw at 12 V
- 11.7 W (976 mA)
- Size
- 132 x 44.2 x 95.1 mm
- Status
- End of life announced (support until 3 August 2032)
Power socket pinout
| Pin | Function | Our wire |
|---|---|---|
| 1 | Power (+) | Red |
| 2 | Ground (-) | Black |
| 3 | Digital input | Green |
| 4 | Digital output | White |
The car cable and the 230 V supply only use pins 1 and 2. The I/O wires are on the screw terminal cable.
How much power the RUTX12 draws
With everything busy, Teltonika's figure for the Teltonika RUTX12 is 11.7 W at 12 V, and about 3.7 W at rest. Even that peak leaves 6.3 W spare on the 18 W supply. On a 24 V supply the peak is about 11.9 W.
Which cable should I pick?
- Wall socket. A replacement for the original adapter, with 6.3 W of spare capacity.
- Vehicle. For 12 V cars and 24 V trucks. The RUTX12 accepts up to 50 V.
- Cabinet, battery or solar. For DC rails, batteries and solar. Green and white bring out the I/O. Add a 2 A slow-blow fuse near the source.
Install tips
- Two modems mean two sets of antennas. Plan the cable route before you mount the router, so the power lead does not cross the antenna cables.
- The Teltonika RUTX12 is rated to 50 V, which gives good margin on 24 V vehicles. A clean supply is still the best protection against spikes.
- Insulate any wire you do not use. A loose green or white wire touching the cabinet can trigger an input or short an output.
Teltonika RUTX12 power FAQ
?Can I run the Teltonika RUTX12 on 12 V or 24 V?
Yes. The Teltonika RUTX12 accepts 9 to 50 V DC, which covers 12 V, 24 V and most 48 V DC installations.
?Does the Teltonika RUTX12 come with a power supply?
New units usually ship with a 9 V wall adapter. A second cable makes sense for spares, a second site, or an install where a wall plug is not practical, such as a vehicle or a DIN rail cabinet.
?Does the Teltonika RUTX12 need more power with two modems running?
More than most, but still well within range. Teltonika measured about 11.7 W at full load on 12 V. Our 18 W supply has margin for that, though less if you add a heavy USB device.
?Can I use the input and output on the Teltonika RUTX12 with your cable?
Yes. The screw terminal cable brings pin 3 (digital input) out on the green wire and pin 4 (digital output) on the white wire. Configure them in RutOS under Services, Input/Output.
?Does Smart Power Cable sell Teltonika routers?
Not the router, no. We are an independent maker of power cables. The Teltonika RUTX12 is a Teltonika product sold through their own channels.
