230 V power supply
12 V from a wall socket. The RUT261 peaks at 2.7 W, well within the 18 W rating.
€13.95 incl. VATBuy now
RUT2 series · power guide
Teltonika RUT261 power supply and cables
The Teltonika RUT261 is a compact 4G router with a 4-pin power socket. Here is what fits it, what it draws, and which cable suits your install.
Screw terminal cable
Bare ends for 12, 24 or 30 V DC, with the I/O wires included.
€11.95 incl. VATBuy now

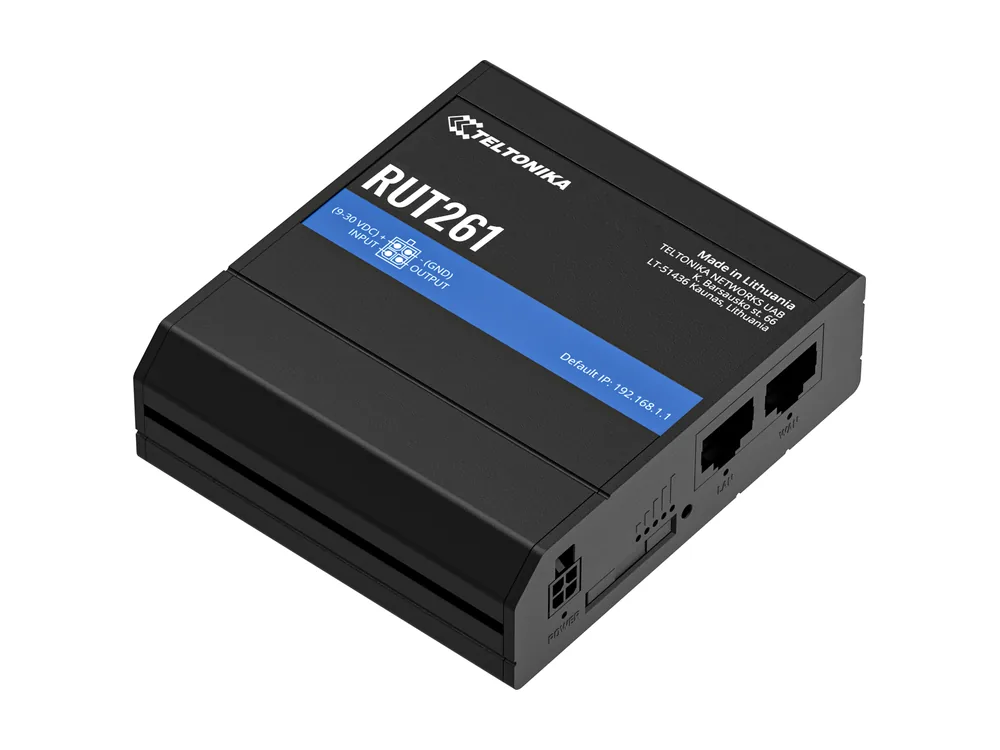

About the Teltonika RUT261
The RUT261 is Teltonika's budget take on the Cat 6 router. It keeps the compact housing, the two Ethernet ports and 4G Cat 6 speeds, and leaves out extras to keep the price down. Teltonika describes it as built for everyday operational needs without added complexity.
Think of it for larger roll-outs where you need dozens of identical units and every euro per site counts.
Teltonika RUT261 at a glance
- Mobile
- 4G LTE Cat 6
- Ethernet
- 2 x RJ45
- Wi-Fi
- 2.4 GHz
- SIM
- 1 x SIM
- Power input
- 9 to 30 V DC, 4-pin socket
- I/O on power socket
- 1 digital input, 1 digital output
- Peak draw at 12 V
- 2.7 W (222 mA)
- Size
- 83 x 25 x 74 mm
- Status
- In production
Power socket pinout
| Pin | Function | Our wire |
|---|---|---|
| 1 | Power (+) | Red |
| 2 | Ground (-) | Black |
| 3 | Digital input | Green |
| 4 | Digital output | White |
Colours refer to our screw terminal cable. The car cable and supply use the power pins only.
How much power the RUT261 draws
Teltonika measured the Teltonika RUT261 at 1.1 W when idle and 2.7 W at full load on a 12 V supply, about 222 mA. That is 15% of what our 18 W supply can deliver. Teltonika's 24 V figure is 2.7 W at peak.
Which cable should I pick?
- Wall socket. 12 V from a wall socket. The RUT261 peaks at 2.7 W, well within the 18 W rating.
- Vehicle. Quick vehicle install. Fine on 12 V and 24 V systems.
- Cabinet, battery or solar. Bare ends for 12, 24 or 30 V DC, with the I/O wires included. Add a 2 A slow-blow fuse near the source.
Install tips
- On a large roll-out, order the same cable type for every site. It keeps spares simple and means a field technician never has to guess which lead goes where.
- On 24 V vehicles, add surge protection. Truck and bus systems can spike well above 30 V at engine start, and the Teltonika RUT261 is only rated to 30 V.
- Fit a fuse near the battery when you use the screw terminal cable on 12 V. Our FAQ suggests a 2 A slow-blow fuse.
Teltonika RUT261 power FAQ
?Which input voltage does the Teltonika RUT261 accept?
Anything from 9 to 30 V DC works, so a 12 V battery, a 24 V truck system or our 12 V supply are all fine. Stay below 30 V, including spikes.
?I lost the adapter for my Teltonika RUT261. What do I need?
Any DC supply within 9 to 30 V DC on a Teltonika-style 4-pin plug will work. Our 230 V supply gives 12 V at 1.5 A, which suits the Teltonika RUT261.
?Is the Teltonika RUT261 the same as the RUT260 when it comes to power?
Very close. Both take 9 to 30 V on the same 4-pin socket. Teltonika measured the RUT261 at about 2.7 W at full load on 12 V, so the same cables and supplies work.
?Does the screw terminal cable give access to the Teltonika RUT261's I/O?
Yes. Only the screw terminal cable connects them. Green goes to the input and white to the output. The car cable and the 230 V supply only use the power pins.
?How much headroom does the Teltonika RUT261 leave on an 18 W supply?
Plenty. At 2.7 W peak, the Teltonika RUT261 uses 15% of 18 W.
?Can I buy the Teltonika RUT261 from you?
No, the router is not included. You get the cable or supply you order, and the Teltonika RUT261 itself comes from a Teltonika reseller.
