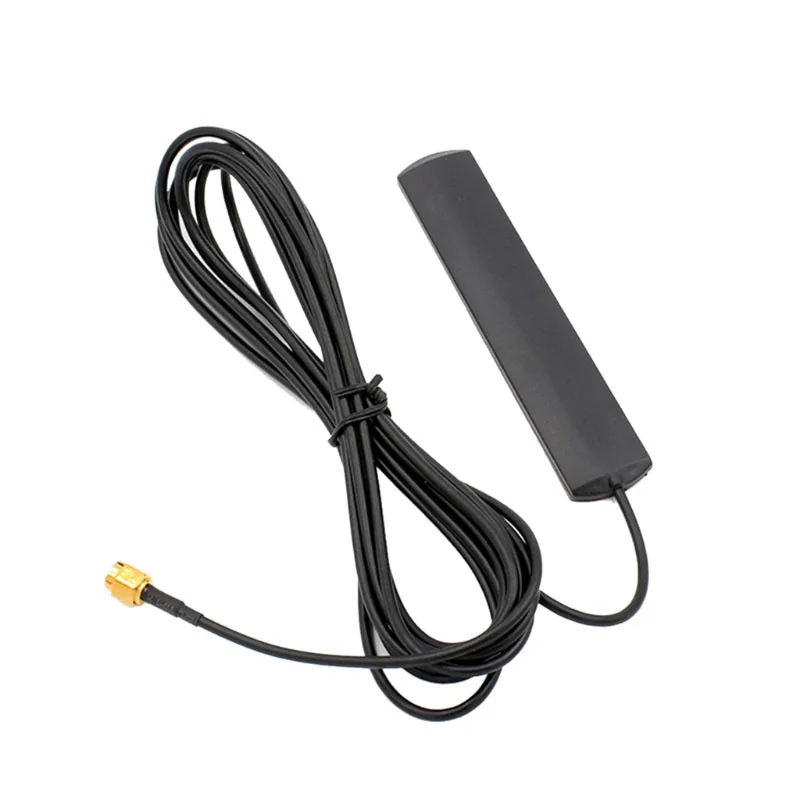

A flat, self-adhesive antenna for routers and modems where a visible external antenna is not wanted. It covers 3G, 4G and 5G over a wide frequency band, which is uncommon for antennas of this type.

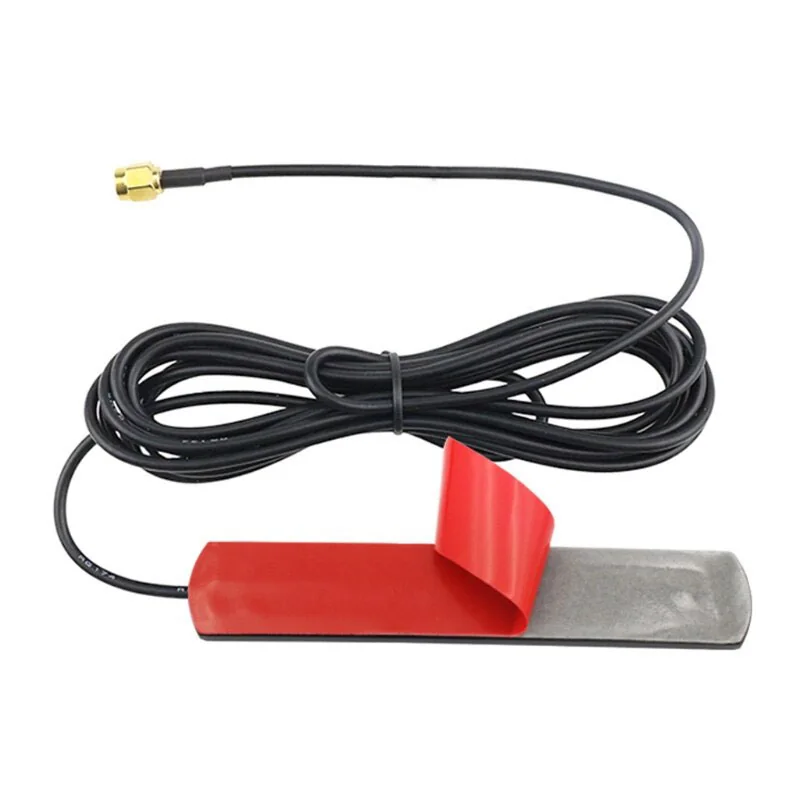

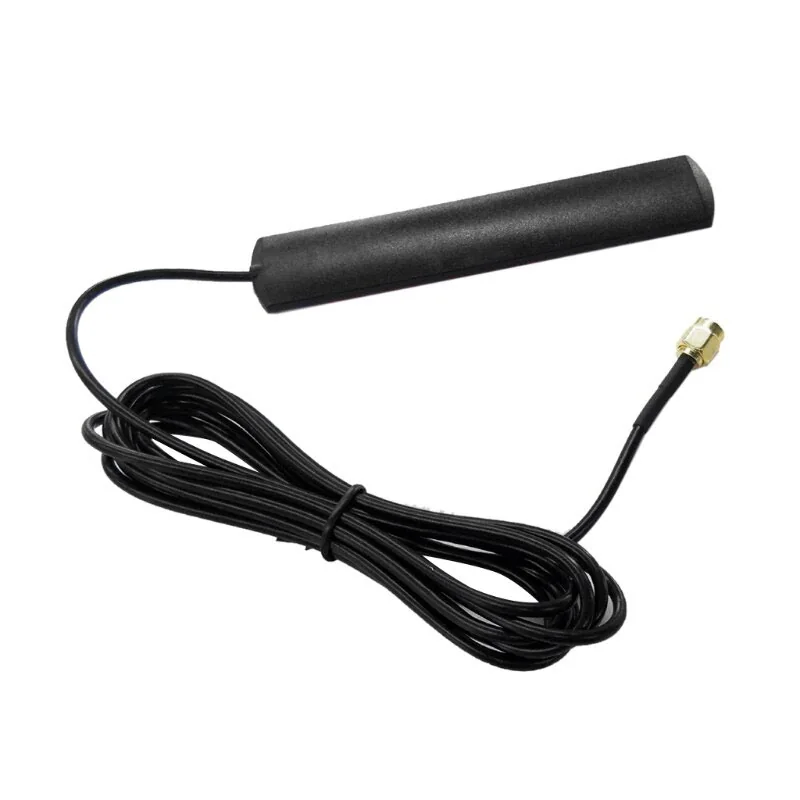

It sticks to most clean surfaces, such as a window, a cabinet wall or the inside of a hull, and can be used both indoors and outdoors. The 2.5 m cable ends in an SMA male connector that fits routers with SMA antenna ports, including Teltonika routers.
Tips for placement
- Most 4G and 5G routers use MIMO with two mobile antenna ports, so plan for one antenna per port. Two antennas is the usual setup.
- Fix the antenna loosely first, check the signal in the router and only then press it firmly into place.
- Place the antennas a little apart, as high as possible and close to a window. Metal shields radio signals, so avoid mounting directly behind metal.
Specifications
| Networks | 3G, 4G and 5G |
|---|---|
| Type | Self-adhesive patch antenna |
| Cable length | 2.5 m |
| Connector | SMA male |
| Mounting | Adhesive, indoor or outdoor |
| Shipping weight | 0.06 kg |
Frequently asked questions
How many do I need?
One per mobile antenna port on the router. Most routers have two ports, so two antennas is the usual choice.
Does it fit Teltonika routers?
Yes. Teltonika routers have SMA female antenna ports, which the SMA male connector fits.
Can the cable be extended?
Yes, with a low-loss SMA antenna cable, SMA male to SMA female.
Patch antenna or roof antenna?
A roof antenna outdoors gives the strongest signal. The patch antenna is made for installations where the antenna should be hidden.
Reviews
There are no reviews yet.
